Double-side strut channel
Classification:
m³
Application: water supply and drainage, fire protection, heating, ventilation, air conditioning, gas, heat, and strong and weak electricity.
Detailed introduction
Molding: Channel steel is manufactured by a series of molding dies or rolls that gradually cold work the strip into the desired channel shape. This method produces a uniform size cross section on the external dimensions.
Welding: Use DC resistance welding to ensure the consistency of welding. Combine destructive test to ensure welding quality.
Function: Quickly with steel structure, concrete structure or other structure composition of various forms of support hanger system.
Features: Side reinforcement, increase the bending capacity of channel steel. Roll edge with teeth to improve shear, slip and impact resistance.
Material: Carbon steel
Finish: Hot dipped galvanized

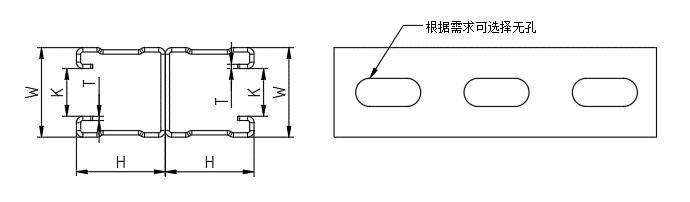

| Item | Size | H | W | K | T | L |
|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | ||
| CG | 21SX2.0 | 21 | 41.3 | 22.3 | 2 | 6000 |
| CG | 41SX2.0 | 41 | 41.3 | 22.3 | 2 | 6000 |
| CG | 41SX2.5 | 41 | 41.3 | 22.3 | 2.5 | 6000 |
| CG | 52SX2.5 | 52 | 41.3 | 22.3 | 2.5 | 6000 |
| CG | 62SX2.5 | 62 | 41.3 | 22.3 | 2.5 | 6000 |
| CG | 72SX2.75 | 72 | 41.3 | 22.3 | 2.75 | 6000 |
| CGW | 21SX2.0 | 21 | 41.3 | 22.3 | 2 | 6000 |
| CGW | 41SX2.0 | 41 | 41.3 | 22.3 | 2 | 6000 |
| CGW | 41SX2.5 | 41 | 41.3 | 22.3 | 2.5 | 6000 |
| CGW | 52SX2.5 | 52 | 41.3 | 22.3 | 2.5 | 6000 |
| CGW | 62SX2.5 | 62 | 41.3 | 22.3 | 2.5 | 6000 |
| CGW | 72SX2.75 | 72 | 41.3 | 22.3 | 2.75 | 6000 |
